Parts

Grab Irons

Grabs Loose

Brass Wire Grab Irons

Grab-2

Grab Irons are brass 1/32" (.032") wire. Grabs are shaped on a custom built bending brake.

Bag of 36 Grab Irons.........................................................................................$12.00

Specifications:

Wire size                                                          1/32" / .032"

Width between legs                                        7/8" / .875"      (18 scale inches in 1:20.3)

Length of legs                                                   5/32" / .156"   (3 scale inches in 1:20.3)

Inside diameter of eye                                   .060"

Outside diameter of eye                                .124"

Center hole distance between eye's             .750" to .900" *

* Eye's are adjustable by bending outward

Brass Square Nut Pins

Brass NB

Brass Nut / Bolt Pin

NB dimension

Bag of 100 Brass N/B's...........................................$15.00



Copper Rivets

1m rivets

.039" Shaft

.079" Head

.250" Long

Bag of 100 Copper Rivets            Temporarily out of stock



Rivet Strips

rivet strips

Brass Rivet Strips..........................................................................................................$2.00 per strip

Specifications

Size, 1' long by 3/16" wide

Rivet spacing, .100" or 10 per inch

Rivet size, approximately .050" in diameter and .025" in height

Coupler Lift Bar

CLB-1

CLB A endCLB B end

Lift Bars are made from 1/16" brass rod bent in a custom brake.   Coupler end is flattened with a hole for attaching chain (not included). Two white metal castings facilitate mounting to car ends.

1 set Lift Bars (1 "A" end and 1 "B" end)........................................................................................$3.00

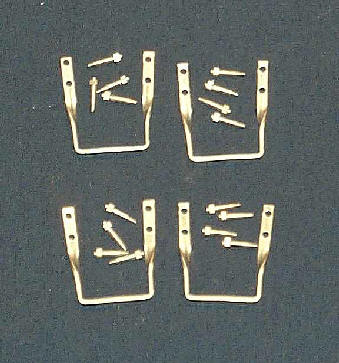

Brass Strap Steps

strap steps-1strap steps-2

Strap Steps are manufactured from 1/32" by 3/32" brass bar. They are bent, twisted and punched on a custom built brake and hole punch. Holes are 1/16" diameter and clean punched and not drilled.  Included with each set of 4 steps is 16 brass NB's for mounting.

Dimensions

Legs are 5/8" (.625") apart

Legs are 7/8" (.875") long.

Strap Step Set with 16 NB's................................................................................................................$8.00

Longer Leg version of above (1/4" longer each leg) (Drop Bottom Gon?)................................$8.50

Brake Hose Assembly

brake hose

PNG Brake Hose assembly

(2 pair pictured)

White Metal casting with 1/16" brass wire cast into the angle cock for easy installation.  Price is for 1 pair.

PNG Brake Hose Assembly, per pair price (enough for 1 car)....................................................$4.00

4000 Series Coupler Box

coupler box

Laser cut plywood and white metal casting glue together to create a pair of 4000 series coupler box extensions. These will glue on top of Accucraft couplers after the "fins" have been removed.

PNG Coupler Box............................................................................................................................$4.00

Loco Detail Parts

loco detail parts

1:20.3 parts cast in white metal. Parts have been painted and weathered for effect. Parts bag will include 1 large and 1 small shovel. 1 water bag and 1 oil can.

Loco Detail Parts..............................................................................................................................$12.00

Tender Detail Parts

tender detail parts

1:20.3 parts cast in white metal. Parts have been painted and weathered for effect. Parts bag will include a right & left butterfly re-railer, 2 wedges and a rail section.

Tender Detail Parts......................................................................................................................$12.00

Passenger Car Steps

passenger car steps

1:20.3 part cast in white metal. Part have been painted and weathered for effect. Parts bag will include a 5 pieces to glue together to form the step.

Passenger Car Step.......................................................................................................................2 each for $6.00



GM12-N20VA Geared Motors

geared motor

gm-specs

Thumbnail. Click to enlarge and back to return.

These are a great little motor for that accessory that needs movement. While rated at 5 vdc, I have tested them at 1 1/2 volts. They run at about 30 RPM with so much torque that you cannot stop them. At 1 1/2 volts they pull about 30 mills of current. That will increase under load. Mounting is on the shaft face. 2 holes taped at 1.6 mm by 35 threads. The mounting holes are 9 mm apart. In the next few weeks, I will laser up some 1/16" birch for a mounting plate.

PLEASE NOTE !!!!! The spec sheets has 4 different motor specifications on it. I ONLY carry the GM12-N20VA motor.

GM12-N20VA Motor

Sold out. I don't plan to purchase anymore.



GM12-N20VA Mounted motor e/w Spring Cam

gm12-mount-1 gm-mount-2 gm-mount-3

 gm-mount-4

GM12-N20VA Mounted motor e/w Spring Cam

Sold out. I do have the mounts and a bag of motor / gearboxes. All have either striped gears or defective motors. If you need parts, shoot me an email.



M1.6 Metric Screws for GM Motor Mounting

m1-6 screws

M1.6 Screws 1/4" long           Pack of 10 Screws        Sold Out  use the screws below

m1.6 x 12

M1.6 X 12mm (1/2") & M1.6 nuts

M1.6 Screws, 12 mm long (1/2") and nuts    Pack of 10    $2.50

M1.6 Screws, 12 mm long (1/2") no nuts      Pack of 10    $1.00





Harpstands

harpstand

Sturdy cast brass Harpstands in raw brass and factory painted (painted sold out)

harpkit

Harpstand Kit

Brass Harpstand Kit.................$25.00

Raw Brass Harpstand...............$30.00

Painted Harpstand....................SOLD OUT



Lamps

90 degree curve                        Straight                        "S" curve

All brass construction. Shades are approximately 7/8" or .875" Tube is 3/32" with .014" wall. A 3/32" washer is supplied with each lamp that the buyer can glue or solder at the location on the tube they desire. Washer is the flange plate next to the structure. The tube is large enough to handle most miniature lamp or LED wires. Does not include lamps or LED's.

90 degree curve lamp. 2 per pack.................$10.00

Straight tube lamp. 2 per pack.......................$10.00

"S" curve lamp. 2 per pack............................$10.00



Couplers

Kadee available with the purchase of a kit only

kadee901

                                                                     Kadee # 901 "E" Series

  $6.00 with the purchase of a kit.

Trucks

andrews-1

andrews-2

PNG 4' 8" Andrews Strap Style White Metal Trucks e/w ball bearings, live springs and brakes

$60.00 with the purchase of a kit only

accu j&s

Accucraft die-cast Jackson & Sharp Passenger Trucks

e/w PNG ball bearing

$90.00 open to all purchasers
