The PNG Short Passenger Car Combine

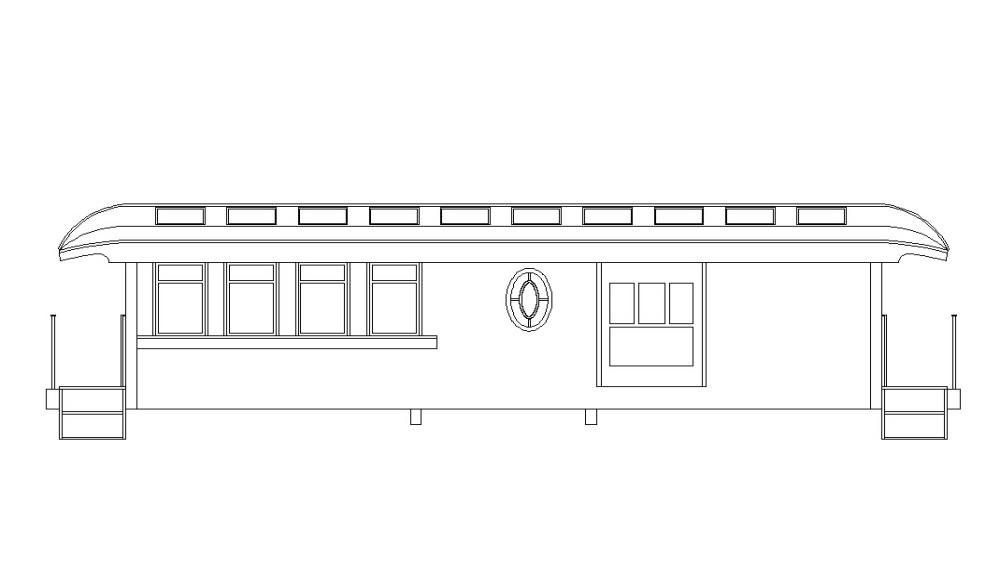

This isn't the official CAD drawings but more of an artist rendition so we all can get an idea of the combine. The ends will be exactly the same as the coach. The sliding door will have 3 windows in the upper half and a panel in the lower. Similar to the end door design.

Several of you have already ordered decals from San Juan Decals. If anyone has the combine decal, I'm planning on leaving 3+ inches between the door and the end of the car for the BAGGAGE decal. If that isn't enough, please let me know.

October 13, 2019 update.

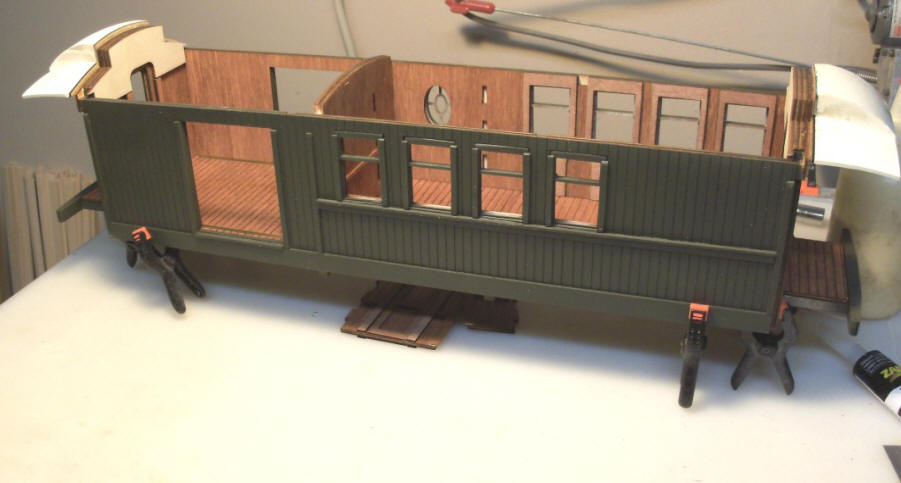

As I stated on the home page, I'm about ready to glue up the sides, ends and dividing wall in the combine. Still have the door to CAD up and laser but it's coming along. Kinda hard to make out in this picture but there is brass channel imbedded just inside the walls in the baggage section which will be the lower track the baggage doors slide in. Future pictures will show it better and of course, the instructions will guide you through their placement.

Hope this fits everyone's vision of the car.

More pictures to follow as it goes together.        Phil

November 3. 2019

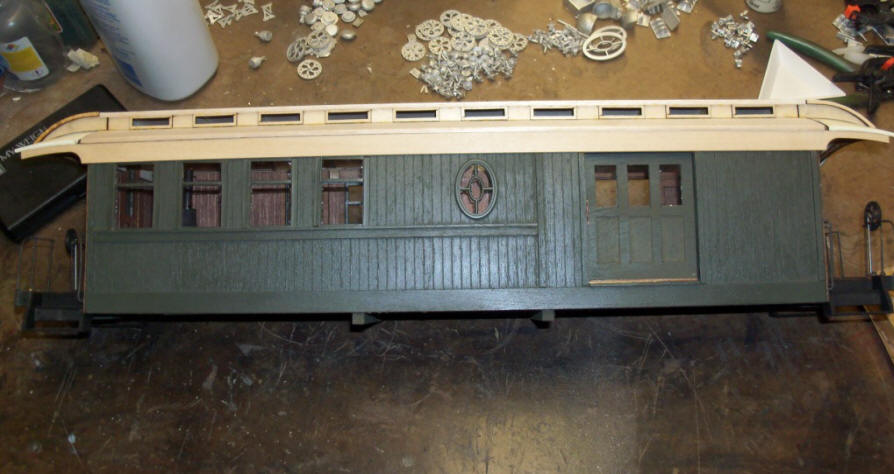

Coming along. The rest of this build is just following the coach roof and underbody.    Phil

11-21-2019 update.

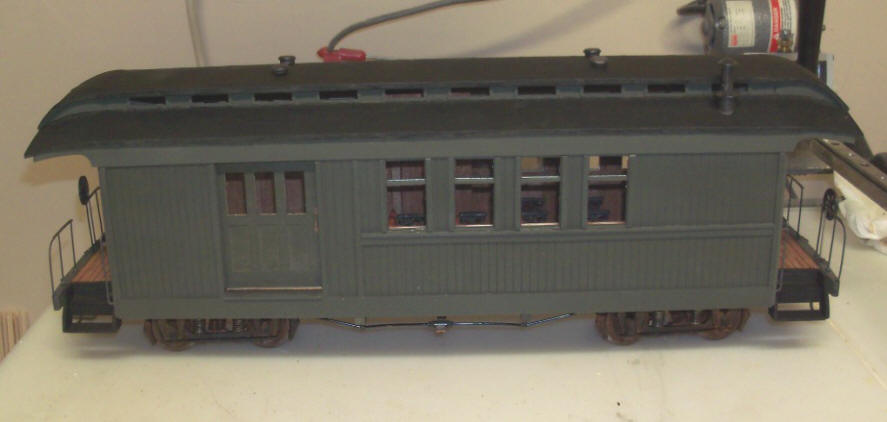

I have the combine mostly finished. Enough for a picture so all can see what they're getting.

Next up is to get a parts sheet for me to use during construction and instructions written.        Phil

PNG-013 Combine Kit inst Color.pdf
