D&RGW Class 4r 30' Reefer

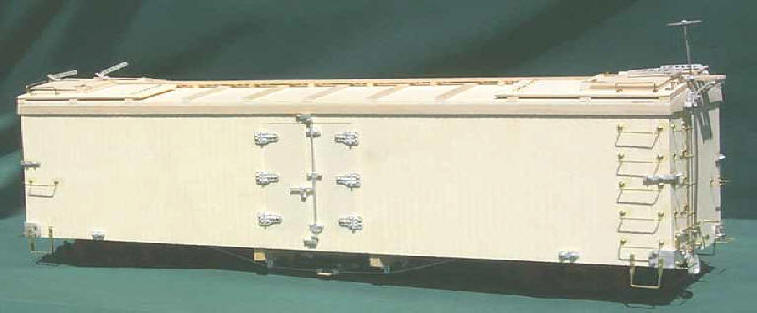

reefer side

The Class 4r Reefer is built with a 1/4" basswood frame, glued and nailed. Sides, ends, floor and roof halves are 1/8" lasered Poplar Plywood. Side, ends and floor are scribed. Truss rods and brake staff are 16 gauge stainless steel. Side doors are 1/8" scribed Poplar Plywood. Side doors are fixed and do not work. Kit comes with frame pre-assembled and brake gear pre-drilled.

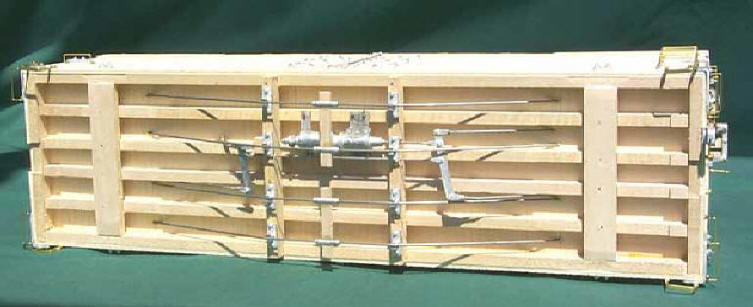

reefer bottom

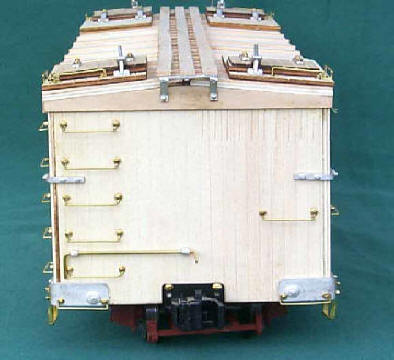

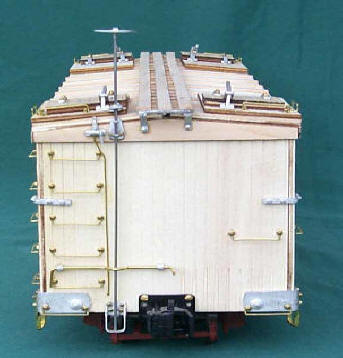

reefer A endreefer B end
"A" End                                                               "B" End
reefer doorreefer ice hatch 1reefer ice hatch 2

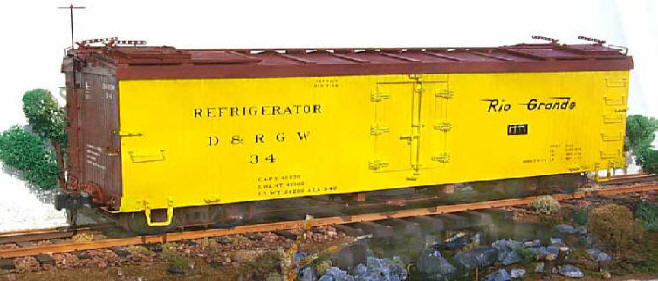

reefer paint 1

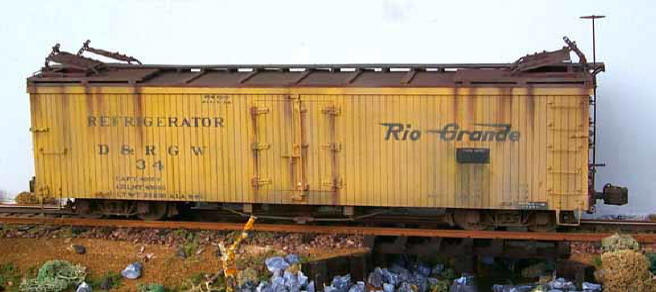

reefer paint 2

Part # PNG-002

Kit Form, less trucks and couplers............................................................................SOLD OUT
